Specifications
General
Product Type
Freestanding
Fuel type
Natural Gas
Smudge-Resistant Finish
No
Cleaning Type
Steam
Control Type
Manual
Control Location
Front
Gas Type
Natural Gas
Gas Heat Configuration
Sealed burners
Ignition Type
Push and Turn
Installation Kit
Yes
Plug-In
Yes
Power Cord Included
Yes
Power cord type
3-Prong
LP Gas Convertible
Yes
Accessories Included
Griddle
Wok Grate
LP Conversion Kit
Wok Grate
LP Conversion Kit
Primary Material
Steel
Additional Hardware Required (Not Included)
Gas Connector Kit
Voltage (V)
120
Amperage (A)
15

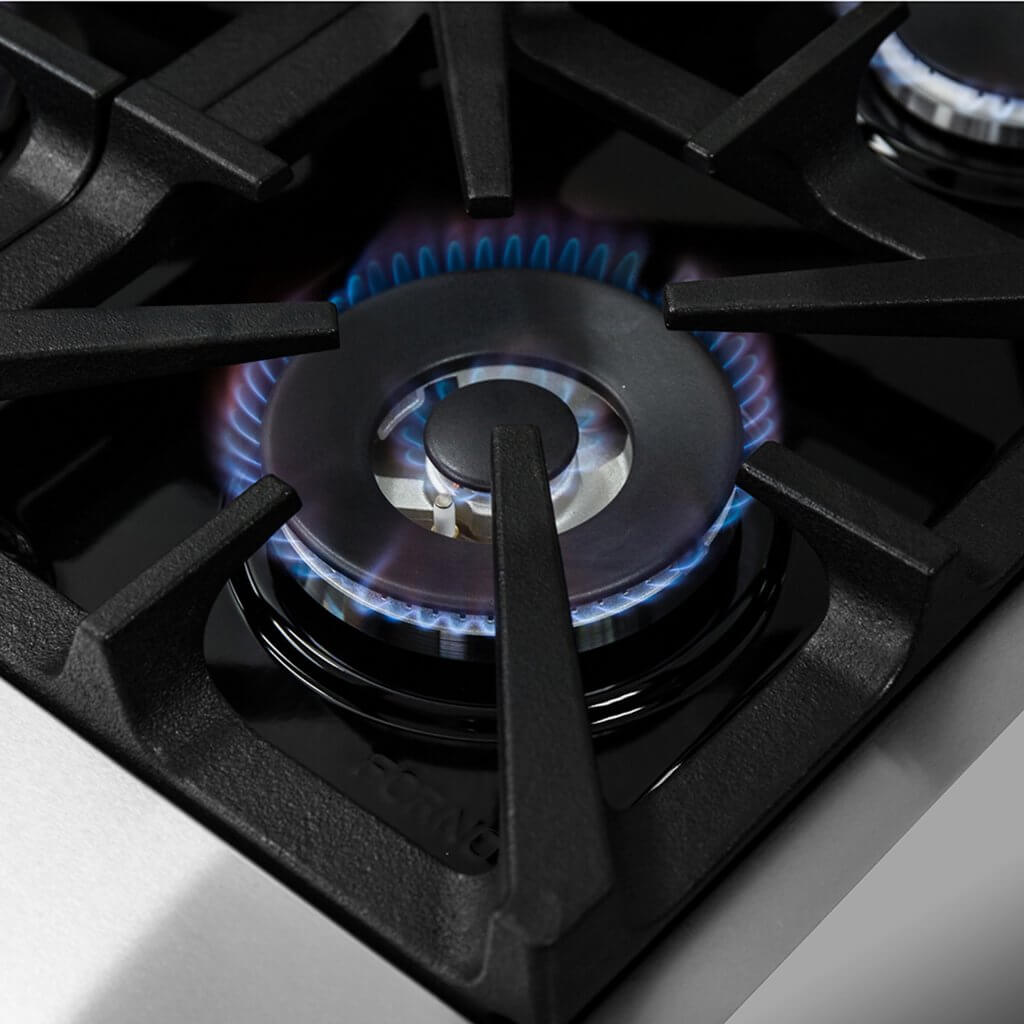

Cooktop
Cooktop surface
Heavy-Duty Continuous Cast Iron Grates
Burner Fuel
Gas
Number of Burners
5
Front Left Center Burner BTU
15000
Front Right Burner BTU
15000
Front Center Burner BTU
20000
Front Left Burner BTU
15000
Rear Right Burner BTU
9000
Rear Left Burner BTU
9000
Total BTU Output
68000
Bridge Burner
No
Oven(s)
Oven Fuel
Gas
Interior Light
Yes

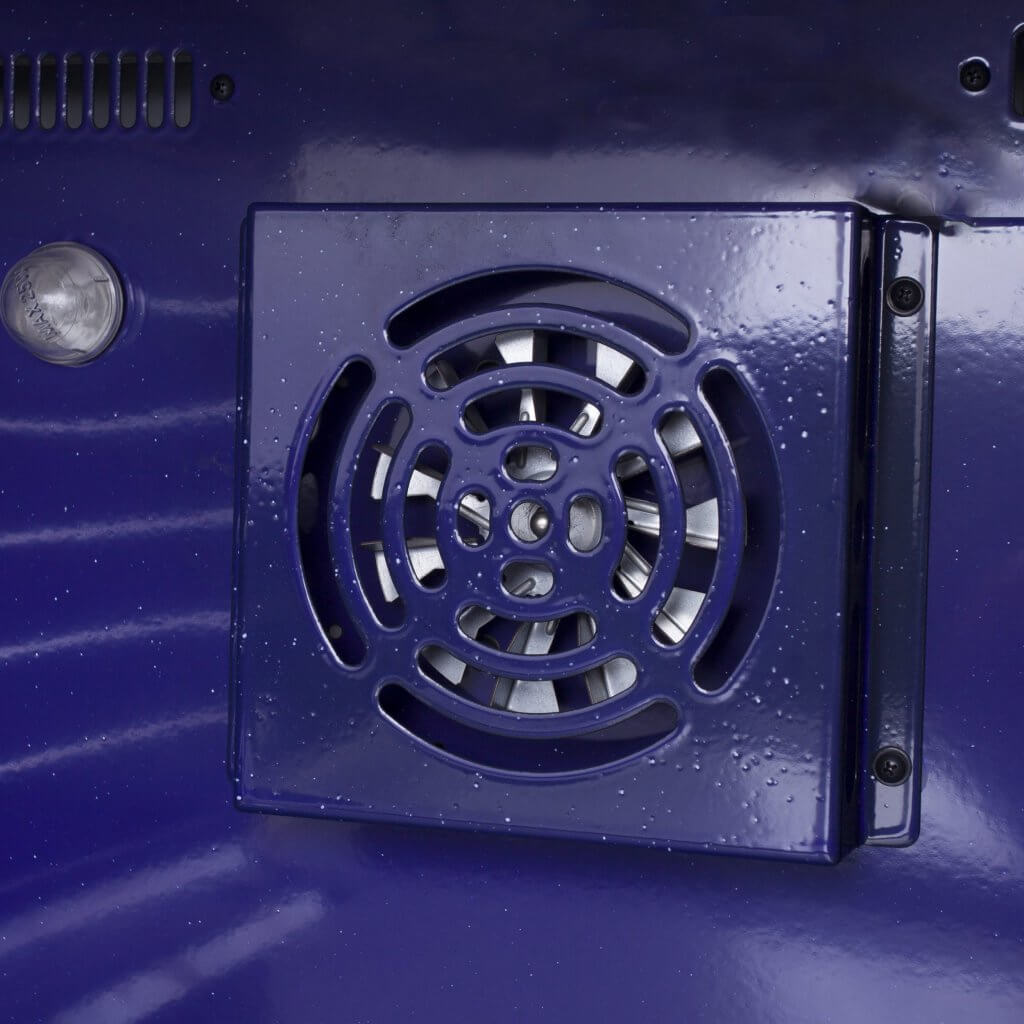

Convection Oven
Yes
Convection Type
Standard Convection
Broiler
Yes
Broiler Location
Oven
Broil Burner BTU Output
10000
Bake Element
Yes
Hidden Bake Element
Yes
Bake Element BTU Output
20000
Number of Ovens
Single oven
Oven Capacity (cu. ft.)
4.32
Overall Oven Capacity (cu. ft.)
4.32
Material Rack
Electroplated
Oven Racks Type
Telescopic
Number of Racks
2
Sabbath Mode
No
Dimensions
Overall Height - Top to Bottom (in)
38
Overall Width - Side to Side (in)
30
Overall Depth - Front to Back (in)
28
Interior Height - Top to Bottom (in)
16
Interior Width - Side to Side (in)
24.92
Interior Depth - Front to Back (in)
18.7
Cutout Width - Side to Side (in)
30
Cutout Height - Top to Bottom (in)
36.6
Cutout Depth - Front to Back (in)
28
Overall Product Weight (lbs)
264.5
Depth with door open 90° (in)
44.25
Warranty
Product Warranty
Yes
Warranty Length
2 Years
Full or Limited Warranty
Limited
