Specifications
General
Product Type
Freestanding
Smudge-Resistant Finish
No
Cleaning Type
Steam
Control Type
Manual
Control Location
Front
Gas Heat Configuration
Sealed burners
Ignition Type
Push and Turn
Installation Kit
Yes
Plug-In
Yes
Power Cord Included
No
Flexible Gas Line Included
No
LP Gas Convertible
Yes
Accessories Included
LP Conversion Kit
Primary Material
Steel
Eligible for Replacement Parts
Yes
Eligible for Hardware Packs
No
Drawer Type
Storage Drawer
Additional Hardware Required (Not Included)
Gas Connector Kit
Voltage (V)
240
Amperage (A)
30
Cooktop

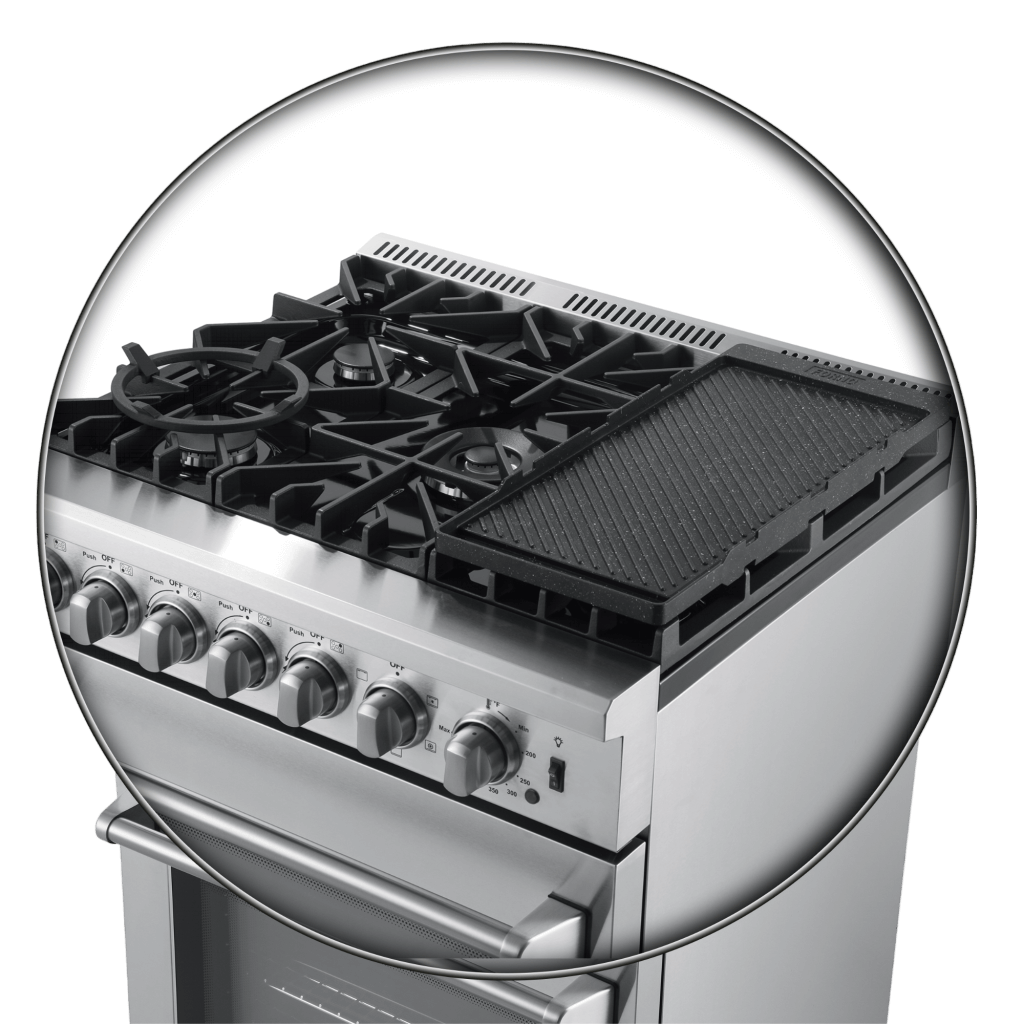

Cooktop surface
Continuous Cast Iron Grates
Dual Cooktop Elements
No
Burner Fuel
Gas
Number of Burners
5
Front Right Burner BTU
16000
Front Center Burner BTU
19000
Front Left Burner BTU
16000
Rear Right Burner BTU
9500
Total BTU Output
70000
Bridge Burner
No
Oven(s)
Oven Fuel
Electric
Interior Light
Yes
Timer
No
Convection Oven
Yes
Convection Type
Standard Convection
Broiler
Yes
Broiler Location
Oven
Bake Element
Yes
Hidden Bake Element
Yes
Bake Element Wattage (W)
2000
Number of Ovens
Single oven
Double Oven Configuration
Side-by-Side
Overall Oven Capacity (cu. ft.)
4.32
Number of Racks
2
Sabbath Mode
No
Dimensions
Overall Height - Top to Bottom (in)
38.58
Overall Width - Side to Side (in)
30
Overall Depth - Front to Back (in)
29.375
Interior Height - Top to Bottom (in)
17
Interior Width - Side to Side (in)
29.92
Interior Depth - Front to Back (in)
18.7
Cutout Width - Side to Side (in)
30
Cutout Height - Top to Bottom (in)
36
Cutout Depth - Front to Back (in)
27.56
Overall Product Weight (lbs)
198
Depth with door open 90° (in)
48
Warranty
Product Warranty
Yes
Warranty Length
2 Years
Full or Limited Warranty
Limited
