Specifications
General
Product Type
Freestanding
Fuel type
Natural Gas

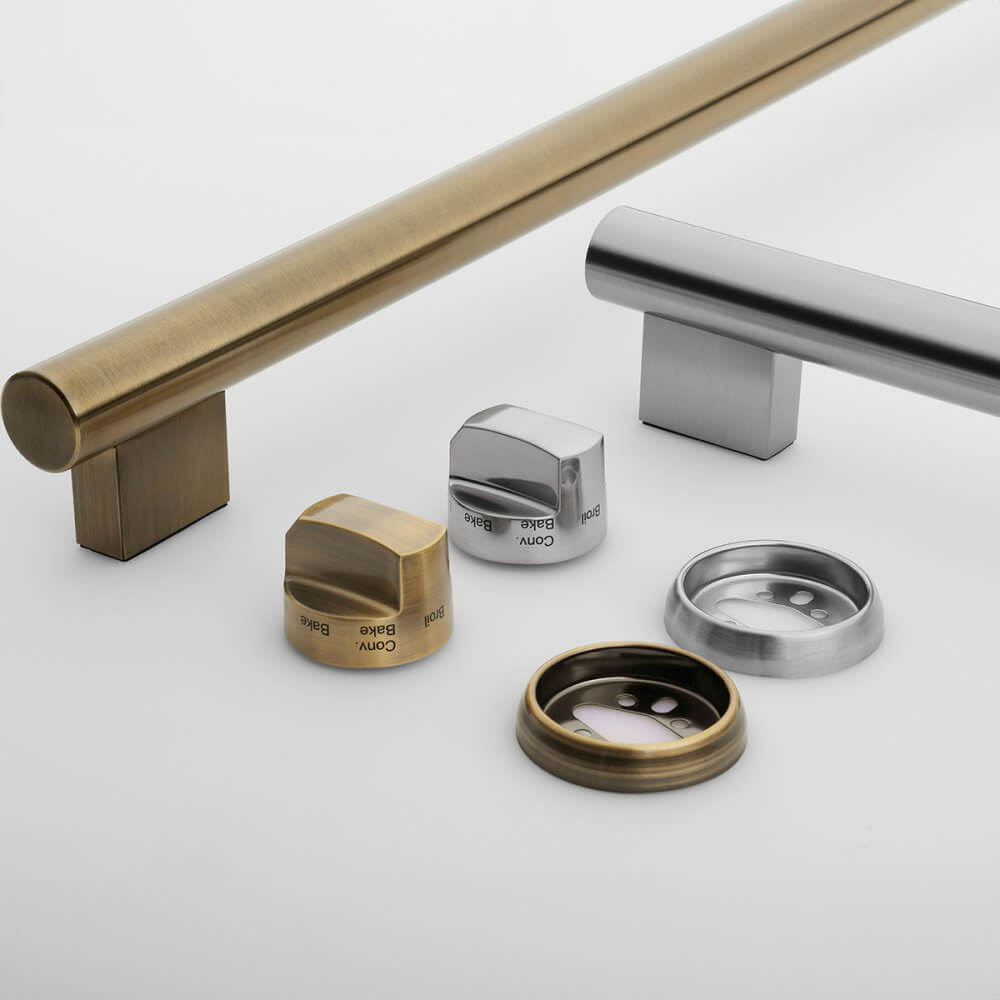

Handle Color/Finish
Antique brass and Stainless-Steel
Smudge-Resistant Finish
No
Cleaning Type
Manual clean

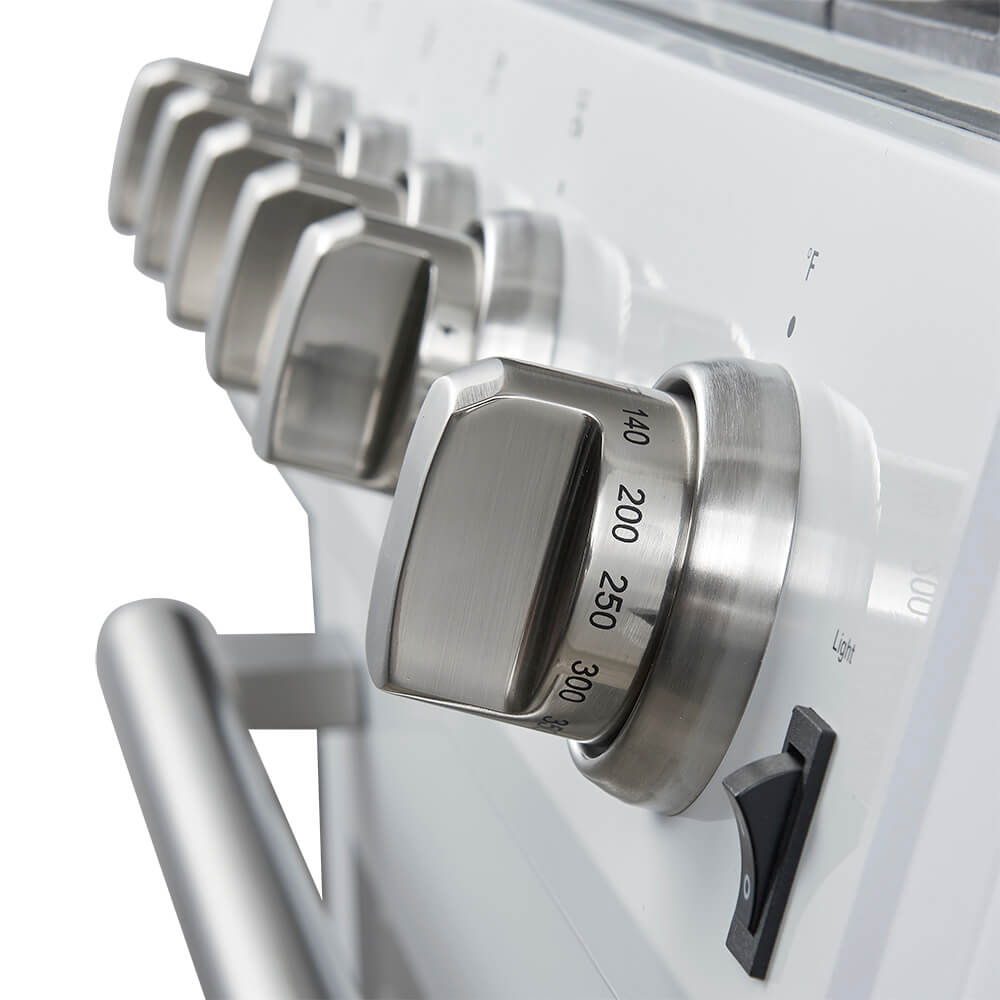

Control Type
Manual
Control Location
Front
Gas Type
Natural Gas
Gas Heat Configuration
Sealed burners
Plug-In
Yes
Power Cord Included
Yes
Power cord type
3-Prong
LP Gas Convertible
Yes
Accessories Included
Wok Grate
LP Conversion Kit
LP Conversion Kit
Primary Material
Steel
Downdraft Exhaust
No
Safety Lock
No
Additional Hardware Required (Not Included)
Gas Connector Kit
Voltage (V)
120
Amperage (A)
15
Cooktop
Cooktop surface
Deep Recessed
Hot Surface Indicator
No
Dual Cooktop Elements
No
Warming Center
No

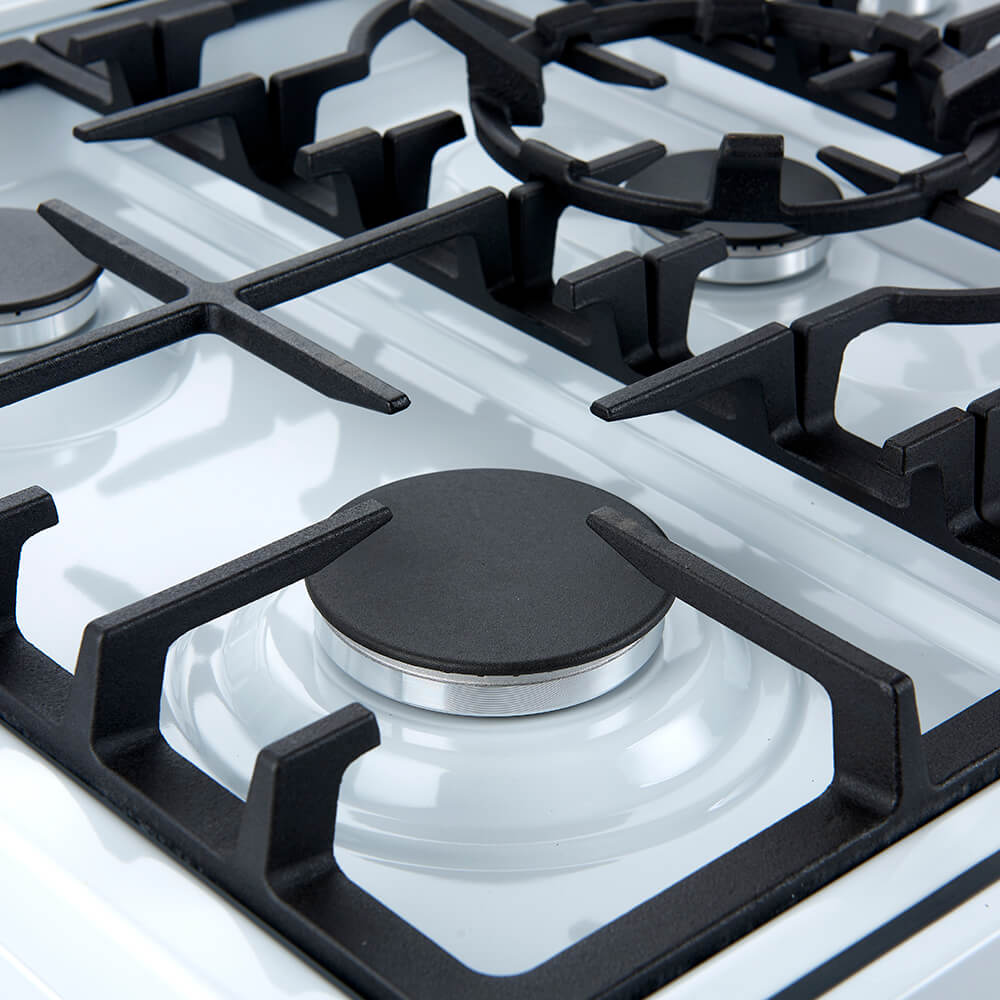

Burner Fuel
Gas

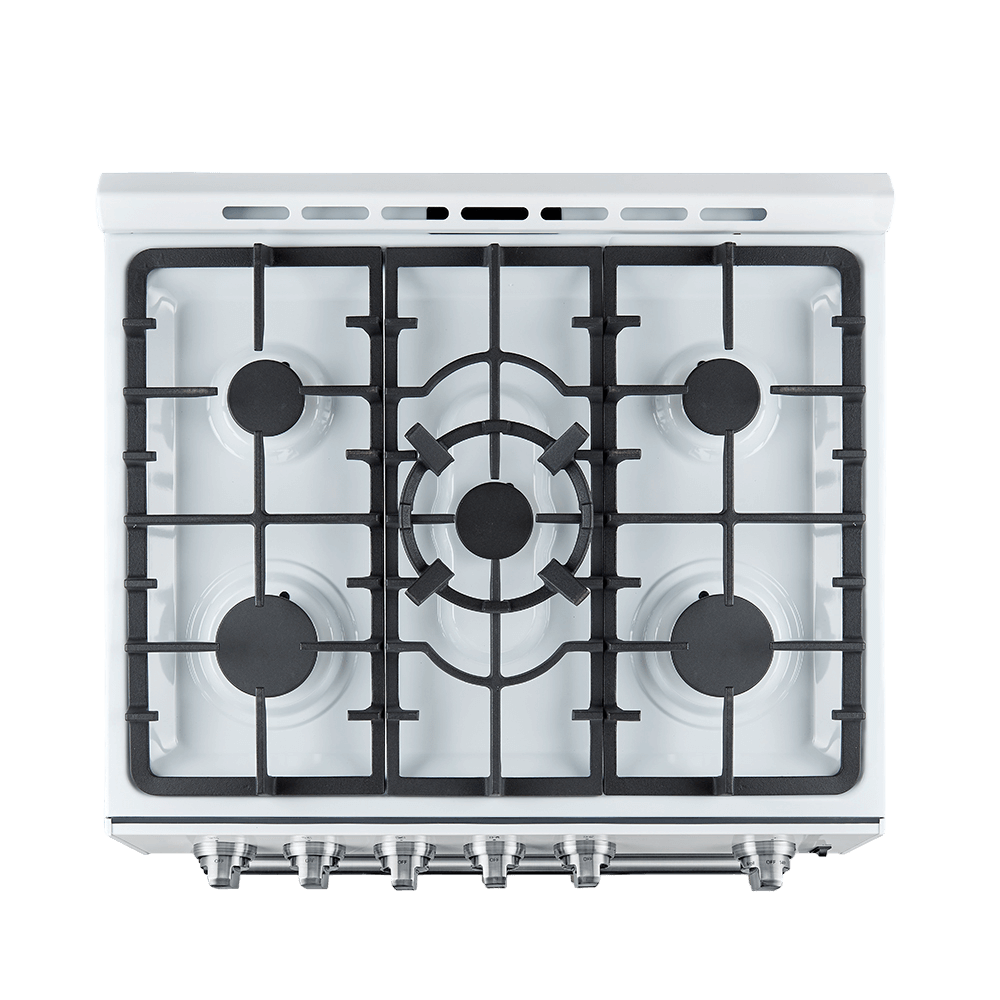

Number of Burners
5
Front Right Burner BTU
12000
Front Right Burner Diameter (in)
4
Front Left Burner BTU
12000
Front Left Burner Diameter (in)
4
Rear Right Burner BTU
3500
Rear Right Burner Diameter (in)
2
Rear Center Burner BTU
6000
Rear Center Burner Diameter (in)
3
Rear Left Burner BTU
6000
Rear Left Burner Diameter (in)
3
Total BTU Output
39500
Bridge Burner
No
Oven(s)
Oven Fuel
Gas
Oven Settings
Broil
Convection bake
Convection bake
Interior Light
Yes
Timer
No

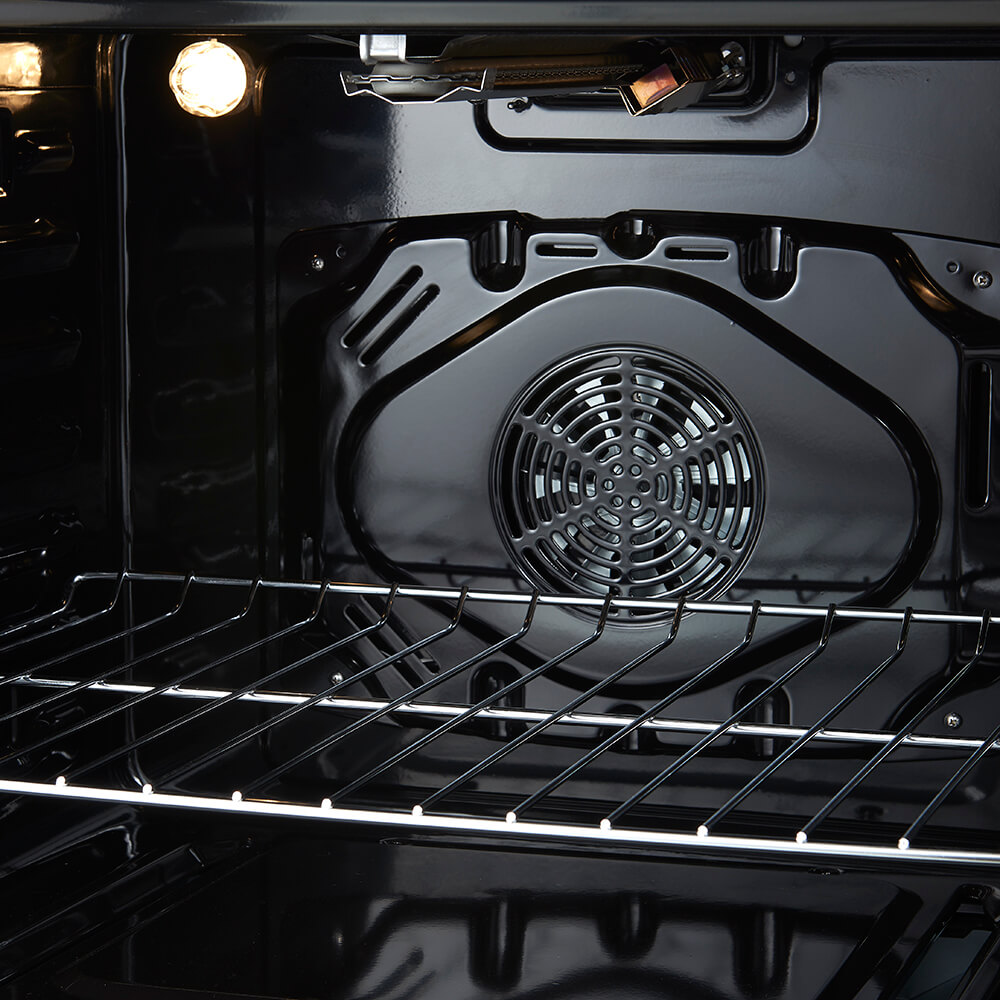

Convection Oven
Yes
Convection Type
Standard Convection
Broiler
Yes
Broiler Location
Oven
Broil Burner BTU Output
7500
Bake Element
Yes
Hidden Bake Element
Yes
Bake Element BTU Output
15000
Number of Ovens
Single oven
Oven Capacity (cu. ft.)
5
Oven Interior Height (in)
19.7
Oven Interior Width - Side to Side (in)
24.4
Oven Interior Depth - Front to Back (in)
17.9
Overall Oven Capacity (cu. ft.)
5
Material Rack
Electroplated
Oven Racks Type
Standard
Number of Racks
2
Sabbath Mode
No
Dimensions
Overall Height - Top to Bottom (in)
37.125
Overall Width - Side to Side (in)
30
Overall Depth - Front to Back (in)
27.625
Interior Height - Top to Bottom (in)
19.7
Interior Width - Side to Side (in)
24.4
Interior Depth - Front to Back (in)
17.9
Cutout Width - Side to Side (in)
30
Cutout Height - Top to Bottom (in)
36
Cutout Depth - Front to Back (in)
25
Overall Product Weight (lbs)
145.5
Depth with door open 90° (in)
46.22
Warranty
Product Warranty
Yes
Warranty Length
2 Years
Full or Limited Warranty
Limited
