Specifications
General
Product Type
Freestanding
Fuel type
Electric
Cleaning Type
Manual clean
Control Type
Manual
Control Location
Front
Electric Heat Configuration
Radiant
Ignition Type
Electric
Plug-In
No
Power Cord Included
No
Primary Material
Steel
Downdraft Exhaust
No
Drawer Type
Storage Drawer
Voltage (V)
240
Amperage (A)
40
Cooktop

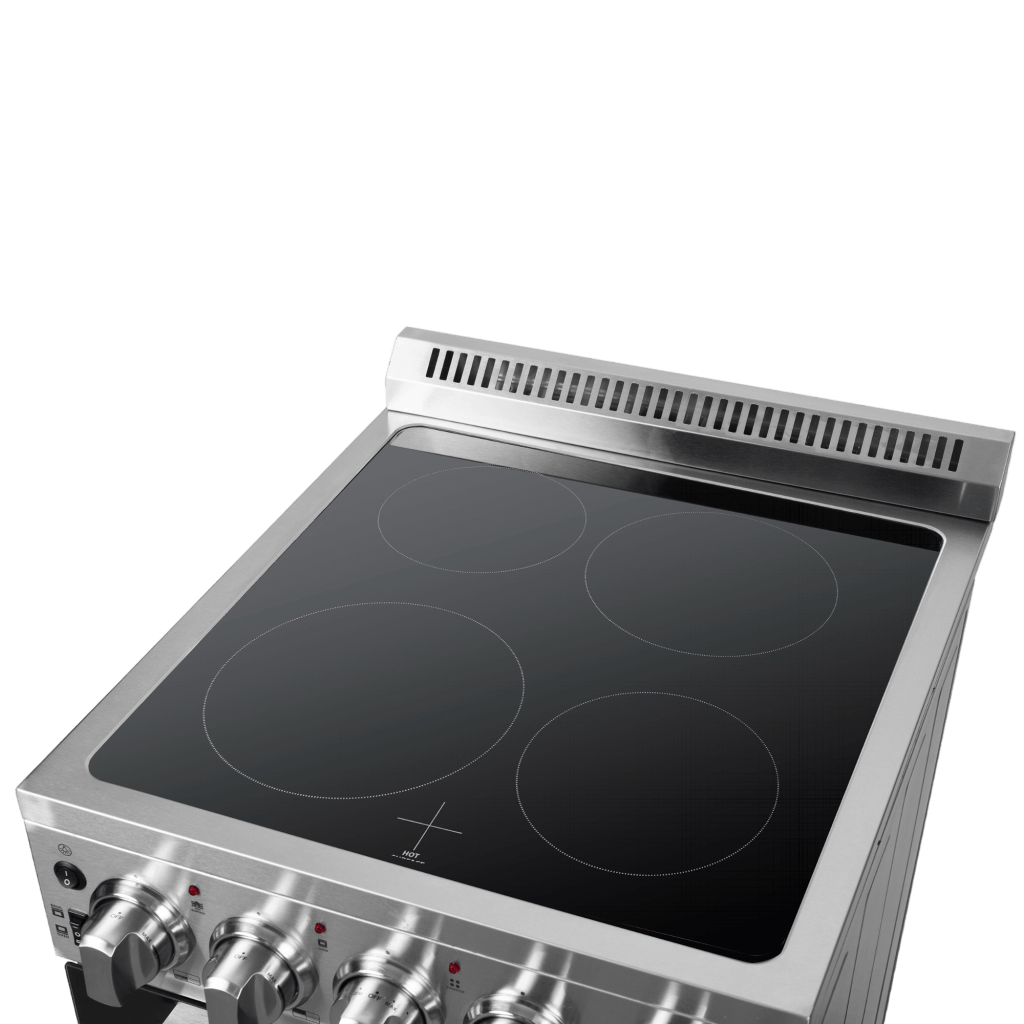

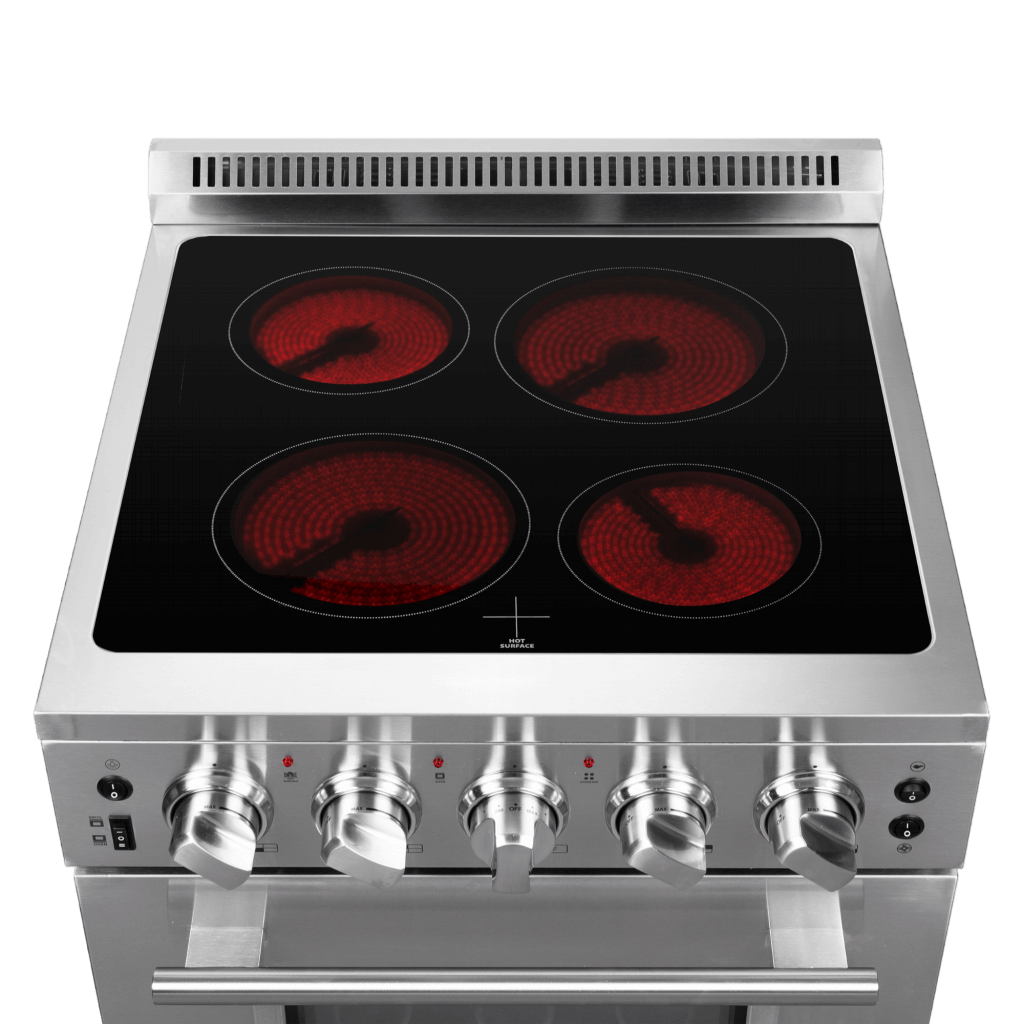

Cooktop surface
Ceramic Glass
Hot Surface Indicator
Yes
Dual Cooktop Elements
No
Warming Center
No
Burner Fuel
Electric
Number of Burners
4
Front Right Burner Diameter (in)
6
Front Right Element Watts (W)
1200
Front Left Burner Diameter (in)
8
Front Left Element Watts (W)
1800
Rear Right Burner Diameter (in)
8
Rear Right Element Watts (W)
1800
Rear Left Burner Diameter (in)
6
Rear Left Element Watts (W)
1200
Oven(s)
Oven Fuel
Electric
Oven Settings
Broil
Convection bake
Convection bake
Interior Light
Yes
Timer
No
Convection Oven
Yes
Convection Type
Standard Convection
Broiler
Yes
Broiler Location
Oven
Broil Element Wattage (W)
2100
Bake Element
Yes
Hidden Bake Element
No
Bake Element Wattage (W)
2100
Number of Ovens
Single oven
Double Oven Configuration
Top/Bottom
Overall Oven Capacity (cu. ft.)
2.3
Material Rack
Electroplated
Oven Racks Type
Standard
Number of Racks
2
Sabbath Mode
No
Dimensions
Overall Height - Top to Bottom (in)
38
Overall Width - Side to Side (in)
23.2
Overall Depth - Front to Back (in)
23.4
Interior Width - Side to Side (in)
18
Cutout Width - Side to Side (in)
23.4
Cutout Height - Top to Bottom (in)
37.78
Cutout Depth - Front to Back (in)
23.18
Overall Product Weight (lbs)
144.4
Depth with door open 90° (in)
41.5
Warranty
Product Warranty
Yes
Warranty Length
2 Years
Full or Limited Warranty
Limited
